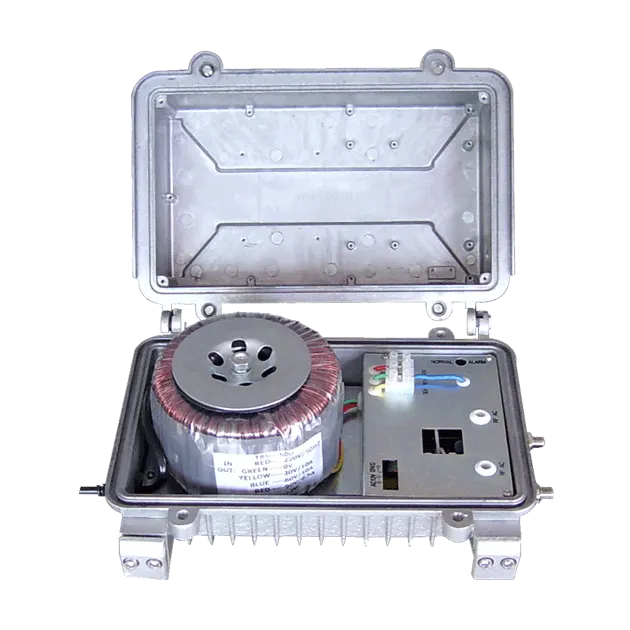

FYGD-F Series CATV Power Supply

FYGD-F-CATV Power Supply
FYGD-F-CATV Power Supply
  • FYGD-F-CATV Power Supply
  • FYGD-F-CATV Power Supply
Quick Quote

Highlights

  • High performance toroidal transformer provides no noise and high efficiency operation
  • Current limited output and short protection. Auto reset upon removal of faults
  • Embedded Power Inserter (EPI) available as standard feature
  • Durable powder coated aluminum alloy enclosure for outdoor applications
  • 5/8 inch bi-directional female connection interface
  • Strand clamps for cable mounting installation

Specifications

ModelsFYGD-F60-6A-WFYGD-F60-10A-WFYGD-F6090-10A-L120
Input
Voltage220VAC120VAC
Voltage Range+/-15%
Frequency50Hz60Hz
ProtectionFuse(5A)Fuse(8A)Fuse(8A)
Power Factor≥0.9(full load)
Output
Voltage60VAC60/90VAC, field-selectable
WaveformSine wave
Current6A10A10A
Power360VA600VA600VA
ProtectionCurrent limited
Short Current150% of max. current rating
Efficiency≥85%
Embedded Power Inserter
Bandwidth1000MHz
Flatness0.5dB
Insertion Loss1.5dB
Return Loss16dB
Mechanical
Input Connection(s)Power cord w/ plug
Output Connection(s)5/8" female
Enclosure MaterialAluminum Alloy
FinishPowder coating
Dimensions245x205x110mm / 9.6”x8.0”x4.3”305x240x120mm / 12.0”x9.4”x4.7”305x240x120mm / 12.0”x9.4”x4.7”
Environmental
Operating Temperature-40°C to 55°C / -40°F to 131°F
Humidity0 to 95% non-condensing
  1. More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
  2. Due to continuing improvements, the product is subject to change without prior notice.
