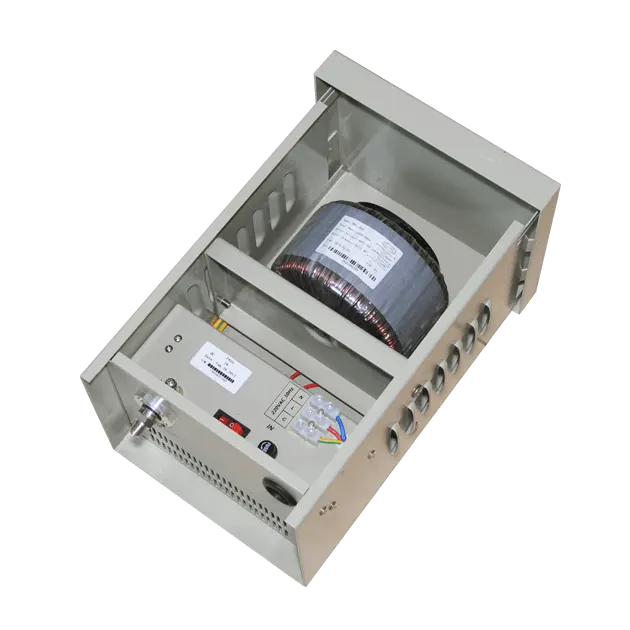

FYGD-P Series CATV Power Supply

FYGD-P-CATV Power Supply
FYGD-P-CATV Power Supply
  • FYGD-P-CATV Power Supply
  • FYGD-P-CATV Power Supply
Quick Quote

Highlights

  • High performance toroidal transformer provides no noise and high efficiency operation
  • Current limited output and short protection
  • Auto reset for short and overloads
  • Embedded Power Inserter (EPI) available as standard feature
  • Durable powder coated aluminum alloy enclosure for outdoor applications
  • 5/8 inch bi-directional female connection interface
  • Durable LED indicators show operating status
  • Pole and wall mounting installations

Specifications

ModelsFYGD-P60-6A-WFYGD-P60-10A-WFYGD-P6090-10A-L120
Input
Voltage220VAC
Voltage Range+/-15%
Frequency50Hz
ProtectionFuse(5A)Fuse(8A)
Power Factor≥0.9(full load)
Output
Voltage60VAC60/90VAC, field-selectable
WaveformSine wave
Current6A10A10A
Power360VA600VA600VA
ProtectionCurrent limited
Short Current150% of max. current rating
Efficiency≥85%
Mechanical
Input Connection(s)Terminal block
Output Connection(s)5/8" female
FinishPowder coating
Dimensions187x250x172mm / 7.36"x9.84"x6.77"
Environmental
Operating Temperature-40°C to 55°C / -40°F to 131°F
Humidity0 to 95% non-condensing
  1. More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
  2. Due to continuing improvements, the product is subject to change without prior notice.
