MC Series Rack Mounting Online UPS

Highlights

True online dual conversion technology provides clean sine wave output
Zero transfer time ensures normal operation of critical loads in the event of power outage
Transient Voltage Surge Suppress (TVSS) and Input Power Factor Correction (PFC)
Extended runtime with external batteries and generator, on-battery start-up supported
External communication via RS-232 interface and intelligent slot

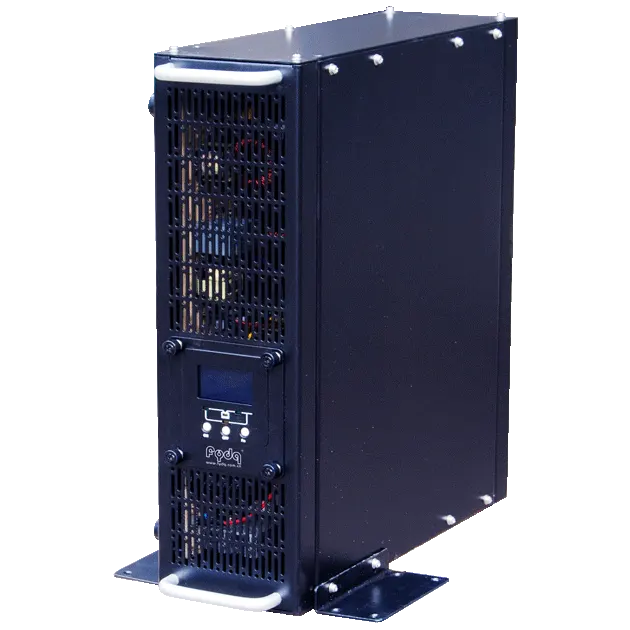

3 in 1 mounting design for rack, tower and desktop
Optional SNMP adapter for remote status monitoring
Multi-purpose LED display for status at a glance

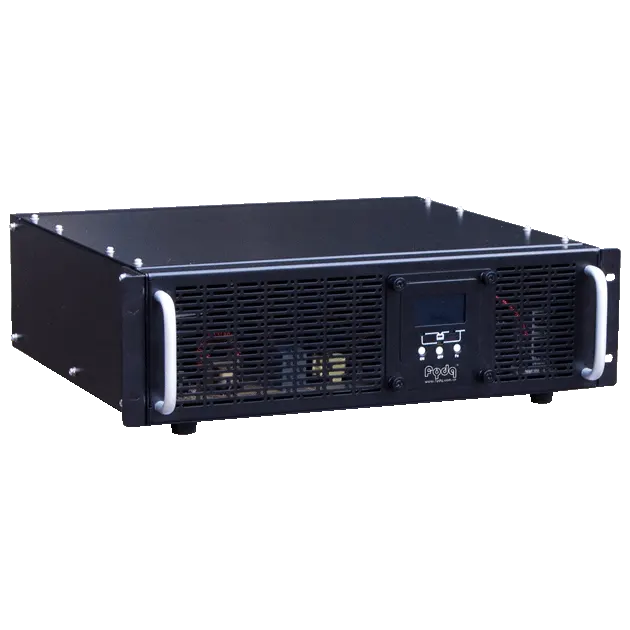

Standard 19-inch rack mount enclosure is available

Models	MC1000	MC2000	MC3000
Nominal Specifications
Rated Power	1000VA / 800W	2000VA / 1600W	3000VA / 2400W
Input
Voltage	220VAC
Voltage Range	115VAC to 300VAC
Frequency	50Hz
Frequency Range	46Hz to 54Hz
Power Factor	≥0.97
Output
Voltage	220VAC
Frequency Stability	+/-0.2% at battery mode
Waveform	Sine wave
Load crest ratio	3:1
Power Factor	0.8
Overload Capacity	110% to 150% bypass in 30sec.; ≥150% bypass in 300ms.
Transfter Time	0ms
Battery & Charger
Battery Voltage	36VDC	72VDC or 96VDC	72VDC or 96VDC
Battery Type	Sealed maintenance free VRLA
Charger Current	6A at 80% load and nominal input
Charging Time	8 hours typical to 90% capacity
Mechanical
LED Display	Line, battery and inverter status, operation mode, battery voltage, load capacity and visible alarm
Communication Interface	RS-232 (DB9) and Intelligent Slot
Finish	Power coated
Dimensions	410x303x88mm (2U)	410x303x132mm (3U)	410x303x132mm (3U)
Weight	7kgs / 15.4lbs	14kgs / 30.9lbs	14kgs / 30.9lbs
Environmental
Operating Temperature	0 to 40°C / 32°F to 104°F
Operating Humidty	0 to 95% non-condensing
Elevation	1500 meters (max.)

More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
Due to continuing improvements, the product is subject to change without prior notice.
