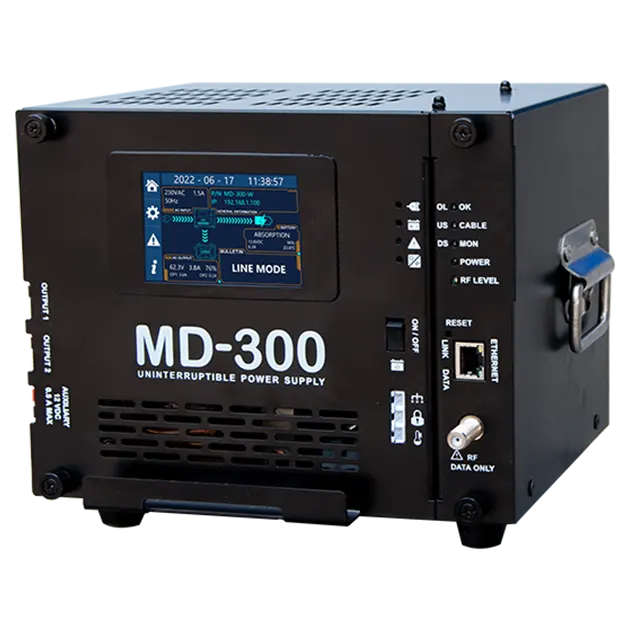

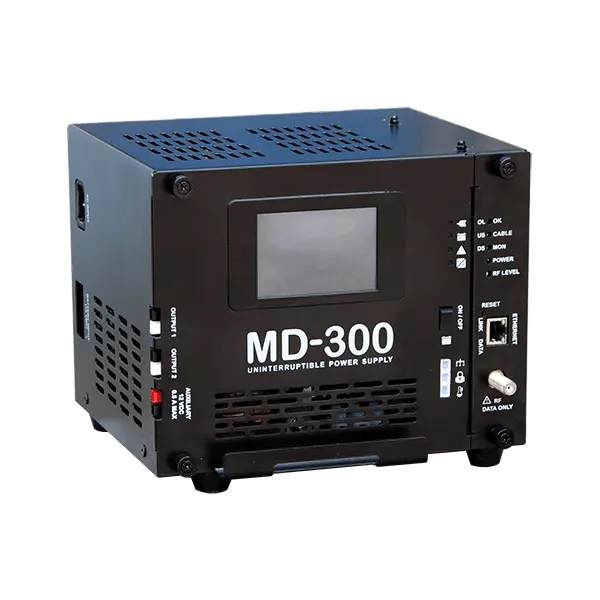

MD-300 Series 300W Outdoor UPS

MD-300-300W Outdoor UPS
MD-300-300W Outdoor UPS
MD-300-300W Outdoor UPS
  • MD-300-300W Outdoor UPS
  • MD-300-300W Outdoor UPS
  • MD-300-300W Outdoor UPS
Quick Quote

Highlights

  • Compact, lightweight and ideal for RFoG & MDU applications
  • Line interactive technology
  • One single battery (12VDC) configuration reducing costs of ownership and maintenance
  • Friendly and interactive 3.5” color touchscreen display
  • Micro-processor regulated sine-wave AC output
  • Intelligent battery management system with temperature compensation
  • Lightning arrester integrated
  • Reliable protections against input, output and short-circuit
  • Easily accessible front panel connections and hot swappable inverter modules
  • Field-selectable output voltage
  • Optional DOCSIS / EuroDOCSIS transponders for status monitoring

Specifications

ModelsMD-300-WMD-300-LMD-300-L120
Input
Voltage220VAC120VAC
Voltage Range± 15%
Frequency50Hz60Hz60Hz
Power Factor≥ 0.9 at full load
Output
Voltage60VAC60V/90V, field-selectable
Regulation+/-5%
WaveformSine wave
Current5A
Power300VA
ProtectionCurrent limited
Short CurrentProgrammable, 125% max.
Efficiency≥90%
Transfer characteristic4ms
Battery & Charger
Battery TypeVRLA or Lithium
Charger Current6-10A
Charging Time8 hours typical to 90% capacity
Mechanical
Input Connection(s)IEC320/C14
Output Connection(s)Anderson connectors
FinishBlack powder coating
Dimensions234 x 197 x 220mm / 9.2” x 7.8” x 8.7”
Environmental
Operating Temperature-40°C - 55°C
Humidity0 ~ 95% non-condensing
  1. More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
  2. Due to continuing improvements, the product is subject to change without prior notice.
