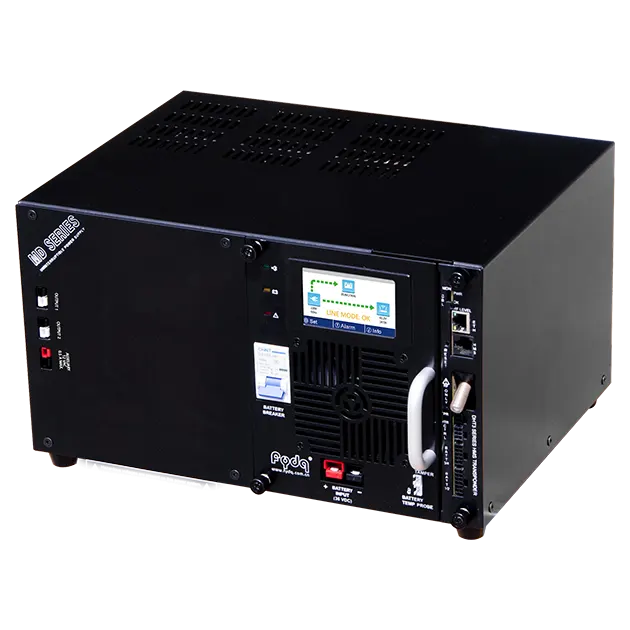

MD Series Standby Power Supply (Outdoor)

MD-Standby Power Supply (Outdoor)
MD-Standby Power Supply (Outdoor)
  • MD-Standby Power Supply (Outdoor)
  • MD-Standby Power Supply (Outdoor)
Quick Quote

MD series standby power supply is so-designed for outdoor powering applications in calbe and broadband systems and capable of providing reliable, clean and uninterrupted power in the hardest environment. Line interactive technology, industry-proven ferro-resonant transformer, plus advanced micro-processor control and management, make MD series be different from ordinary UPSs.

Highlights

  • Industry-proven backup power solutions for cable
  • systems in outdoor powering applications
  • Line interactive ferro-resonant technology
  • Micro-processor controlled clear and regulated quasi-square wave output
  • 3.2”color touch-screen display provides very smart & friendly operation
  • Intelligent battery management system with temperature compensation
  • Excellent input, output and short-circuit protections
  • Easily accessable front panel connections
  • Hot swappable inverter modules
  • Field-selectable output voltage
  • Embedded status monitoring
  • Low Voltage Directory (LVD) and EMC directory compliance

Specifications

ModelsMD-6015-WMD-6915-L120MD-6922-L120
Input
Voltage220VAC120VAC120VAC
Voltage Range-20% to 15%
Frequency50Hz60Hz60Hz
Power Factor≥ 0.9 at full load
Output
Voltage60V60V/90V, field-selectable60V/90V, field-selectable
Regulation+/-5%
WaveformQuasi-square
Current15A15A/10A22A/15A
Power900VA (max.)1350VA (max.)
ProtectionCurrent Limited
Short Current150% of max. current rating
Efficiencybetter than 90%
Transfer characteristic4ms
Battery & Charger
Battery TypeSealed maintenance free VRLA
Charger Current10A at 80% load and nominal input
Charging Time8 hours typical to 90% capacity
Mechanical
Input Connection(s)IEC320/C20
Output Connection(s)5/8" F Type & Anderson connectors
FinishBlack powder coat
Dimensions368x210x298mm / 14.5” x 8.3” x 11.8”
Environmental
Operating Temperature-40°C to 55°C / -40°F to 131°F
Humidity0 to 95% non-condensing
  1. More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
  2. Due to continuing improvements, the product is subject to change without prior notice.
