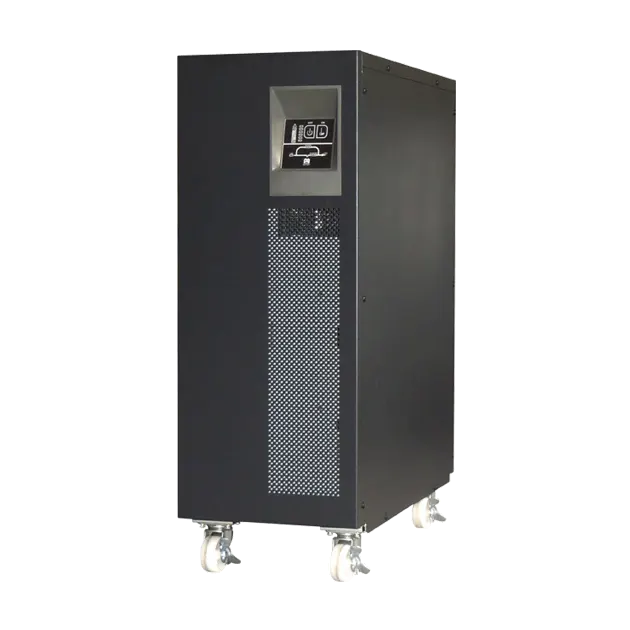

MG31 Series 3-Phase Tower-Mount Online UPS

MG31-3-Phase Tower-Mount Online UPS
MG31-3-Phase Tower-Mount Online UPS
  • MG31-3-Phase Tower-Mount Online UPS
  • MG31-3-Phase Tower-Mount Online UPS
Quick Quote

3-phase UPS system, online dual conversion technology, sine wave stable output, zero transfer time, N+1 Redundant Parallel Operation supported...All of these make MG31 a nice choice as backup power in your data center.

Highlights

  • 3-phase input and 1-phase output high-power UPS
  • True online dual conversion technology provides clean sine wave output
  • Zero transfer time ensures normal operation of critical loads in the event of power outage
  • Transient Voltage Surge Suppress (TVSS) and Input Power Factor Correction (PFC)
  • Micro-computer controlled on-startup self-test and user-friendly bypass protection
  • N+1 Redundant Parallel Operation (parallel kit is optional) Extended runtime with external batteries and generator, on-battery start-up supported
  • External communication via RS-232 interface and intelligent slot
  • Optional SNMP adapter for remote status monitoring
  • Multi-functional LED display (LCD display optional)

Specifications

ModelsMG31-10KLMG31-20KLMG31-30KL
Nominal Specifications
Rated Power10000VA / 8000W20000VA / 16000W30000VA / 24000W
Input
Voltage380VAC, three-phase
Voltage Range304VAC to 478VAC
Frequency50Hz
Frequency Range46Hz to 54Hz
Current50A (max.)75A (max.)100A (max.)
Power Factorbetter than 0.95
Output
Voltage220VAC
Voltage Regulation+/-2% at battery mode
Current45A68A91A
Frequency Stability+/-0.2% at battery mode
WaveformSine wave
Harmonic DistortionT.H.D. better than 2% at full load (linear load)
Load crest ratio3:1 max.
Power Factor0.8
Overload Capacity105% to 130% bypass in 10 minutes, over 130% bypass in 1 second and cut off output in 1 minute
Transfter Time0ms
Battery & Charger
Battery Voltage192VDC or 240VDC
Battery TypeSealed maintenance free (SMF) VRLA battery
Charging TimeDepends on capacity of external battery bank(s)
Backup TimeDepends on capacity of external battery bank(s)
Mechanical
LED DisplayOperation mode, line, battery and inverter status, battery voltage, load capacity and visible alarm
LCD DisplayInput / output voltage, input / output frequency, battery voltage, load capacity and temperature
Communication InterfaceRS-232 and Intelligent Slot
FinishPowder coating
Dimensions260x570x717mm
Weight39KGS55KGS55KGS
Environmental
Operating Temperature0 to 40°C
Operating Humidty0 to 95% non-condensing
Elevation1000m (max.)
  1. More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
  2. Due to continuing improvements, the product is subject to change without prior notice.
