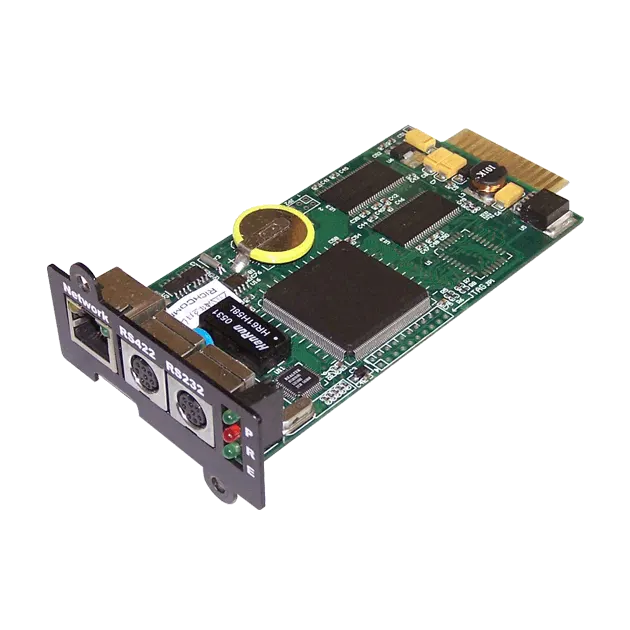

PowerNET SeriesSNMP Adaptor

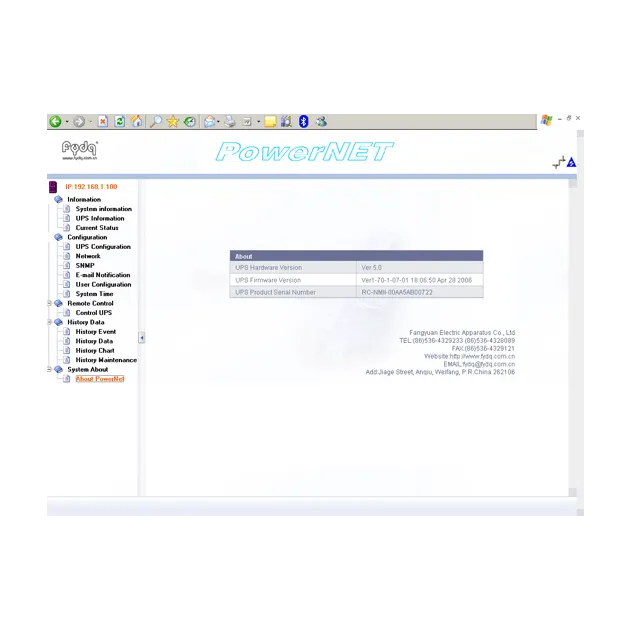

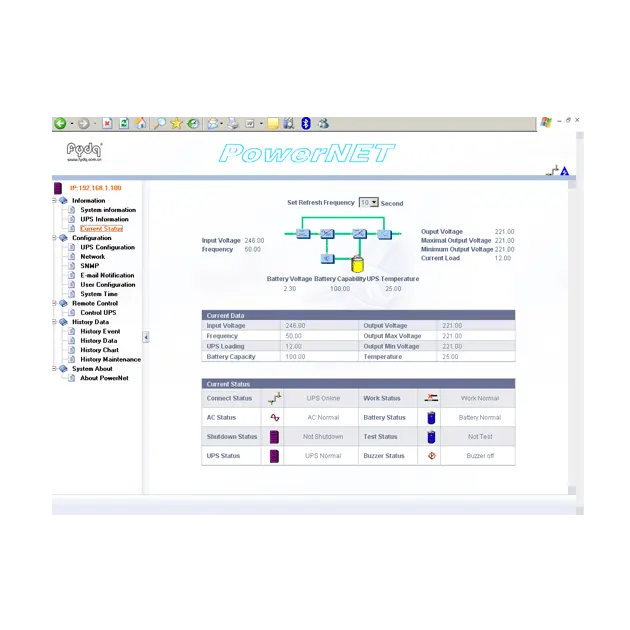

PowerNET monitors operating status of and sends commands to UPS. In detail, user can observe operating information and status of UPS, such as input voltage, output voltage, frequency, battery capacity and load capacity etc., via a web browser. PowerNET can send shutdown command to UPS in the events of main failure, overload, over temperature, battery low and so on. User can even make a schedule to manage installed UPS: when and in which event it starts up and/or shuts down. All of these can be done by PowerNET.

Features

  • Hypertext Transfer Protocol (HTTP) supported
  • Dynamic Host Configuration Protocol (DHCP) supported
  • Simple Network Management Protocol (SNMP) supported
  • Telnet and Hyper Terminal supported
  • Support for online configuration, management, control and multiple clients management
  • E-mail notification on emergency
  • Fully programmable instant and scheduled tasks (both ON and OFF), auto-save log data
  • Re-startup not required for IP address update and change

Nominal Specifications

ModelsPOWERNET
Interface
UPS SupportedMC, MG, MG31, MS and MS31
Network InterfaceRJ-45
Ethernet10/100Mbps
Serial InterfaceHigh-speed Asynchronous RS232 and RS422
InstallationPlug-in
LED DisplayPower, Status, Ready, LAN 10/100M Link/Active
Network Communications
ProtocolsTCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP
MIBMIB-II(RFC1213, RFC1315, RFC1316), UPS MIB (RFC1628), PPC MIB
Status Monitored
Input ParametersVoltage and frequency
Output ParametersVoltage, load
BatteryVoltage, capacity, runtime and replacement log
AlarmLow input, over input, line loss, overload, low battery, over temperature
UPS StatusAC line, battery, general working status of UPS, shutdown schedule, operation
Programmable ControlInstant shut-down and restart, scheduled shut-down and restart.
EventsAutomatic shut-down in the events of low battery, low input, line loss, overload, over-temperature, bypass and conditions as set.
History Log RecordsDate/time, input & output voltage, frequency, load, battery capacity and temperature
Electrical
Operating Voltage8VDC to 15VDC
Power Consumption2.5W
Environmental
Operating Temperature0°C to 60°C
Humidity10 to 85% no condensing
Accessories
CablesRJ-232 female to RJ-232 female, PS2 to RJ-232 male
CD-ROMUser Guide, MIB
  1. Please download datasheet for more details.
  2. Due to continuing improvements, layout, specifications and configuration of the product are subject to change without notice.
