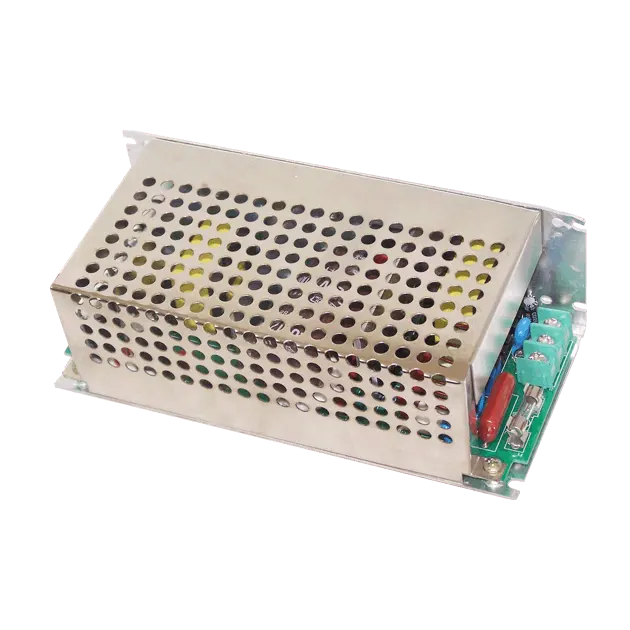

SMPS-A1 Series Switching Mode Power Supply

SMPS-A1-Switching Mode Power Supply
SMPS-A1-Switching Mode Power Supply
  • SMPS-A1-Switching Mode Power Supply
  • SMPS-A1-Switching Mode Power Supply
Quick Quote

Switching mode power supply (SMPS) built by Fangyuan is fully customzied. Not only the product itself, we also focus on your cost, help you with the most cost-effective solution.

Highlights

  • Wide input voltage range
  • Low ripple and high efficiency design
  • Short circuit protection
  • Input surge protection
  • Undervoltage lockout
  • Overvoltage protection
  • Overload protection
  • Chromeplate enclosure

Specifications

ModelsSMPS-A1
Input
Voltage60VAC
Voltage Range45VAC to 90VAC
Waveformsine-wave or quasi-square
Undervoltage Lockout30VAC
Inrush Current20A (max.)
Output
Voltage12V +/-0.5V
Current17A (max.)
Rippleless than 50mV (0 to 20MHz)
Noiseless than 100mV (0 to 20MHz)
Power150W(average),200W(peak)
Efficiencybetter than 85% at full load
Mechanical
LED DisplayAC input, DC output
FinishChromeplate
Dimensions190mm x 64mm x 89mm (LWH)
Net Weight1.3KGS
Environmental
Operating Temperature-40°C to 75°C
Humidity5% to 95% non-condensing
  1. SMPS-A1 is just given for illustration. Other models and configurations are available. Please contact us for details.
