■Improve reliability of power system of your cable network
■Make your ordinary power supplies an interactive back-up power system
Optical node plays a key role in cable TV systems. An optical node provides CATV signals for 500 to 2000 subscribers to teleview. In most of cases, however, the node is powered by only one power supply unit. In the event that the power supply fails to perform normally, the node will stop working and then the subscribers may complain of operators services. Now we can avoid this in a very simple way.

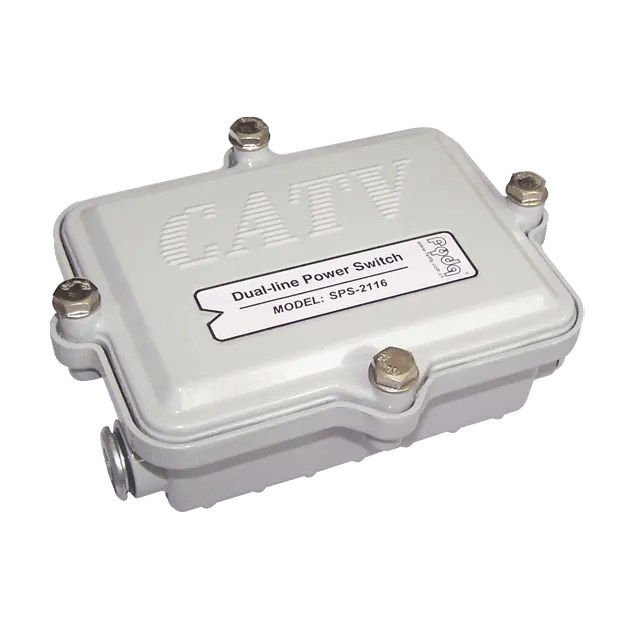

SPS-2116 is designed to solve the problem mentioned above. SPS-2116, along with two power supplies that have their respective loads, can form a small group. SPS-2116 automatically monitors operating status of these two power supplies. In case one power supply fails perform normally, SPS-2116 automatically gets power from another unit and feed the power to loads of the failed one. Signal transmission is ensured.
Moreover, SPS-2116 integrates functions of power feed inserter to saves operators investment.
Highlights
- 5MHz to 1000MHz broadband operation
- Two power supplies monitored and controlled
- Embedded Power Inserter(EPI) installed
- 30VAC to 90VAC wide input voltage range
- 15A through current rating
- Aluminum alloy powder coated enclosure
- Full weather seal with strand clamp for outdoor applications
- Woven metallic gasket for RFI shielding
- requirement
- 5/8 inch female connections (both input and output)
Specifications
| Input Voltage | 30VAC to 90VAC |
| Operating Bandwidth | 5MHz to 1000MHz |
| AC Current Capacity | 15A |
| HUM modulation | ≥66dB |
| Return Loss | 16dB(860 to 1000MHz) |
| Insertion Loss | 1.3dB(860 to 1000MHz) |
| Impedance | 75Ω |
| Input Interface | 5/8" female x 2 |
| Output Interface | 5/8" female x 1 |
| Finish | Aluminum alloy, powder coated |
| Dimensions | 141x110x74mm |
| Gross Weight | 0.7kg |
- Multi-line Power Switch and more advanced Smart Power Switch are available.
