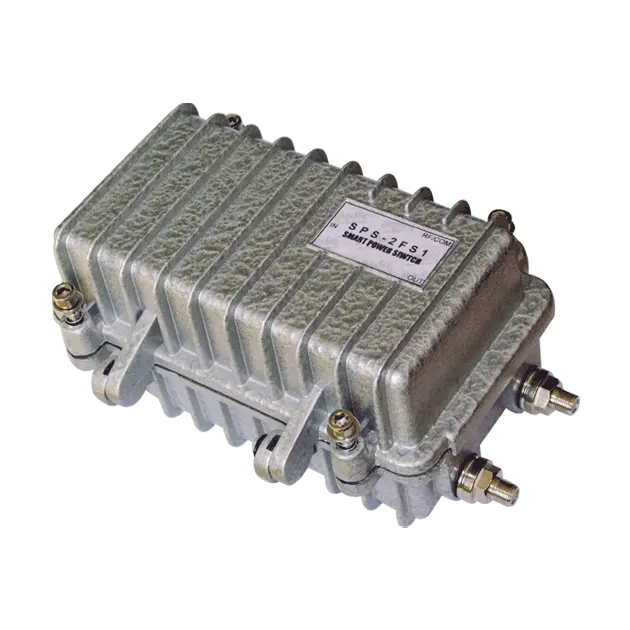

SPS-2FS1 Series Smart Power Switch

SPS-2FS1-Smart Power Switch
SPS-2FS1-Smart Power Switch
SPS-2FS1-Smart Power Switch
  • SPS-2FS1-Smart Power Switch
  • SPS-2FS1-Smart Power Switch
  • SPS-2FS1-Smart Power Switch
Quick Quote

Optical node plays a key role in CATV systems. An optical node provides CATV signals for 500 to 2000 subscribers to teleview. In most of cases, however, the node is powered by only one power supply unit. In case of power supply failure, signal transmission and the service will be interrupted. To solve the problem, Fangyuan power switch provides the simplest but effective and the most cost-effective solution.SPS-2FS1 Smart Power Switch, as a new member of Fangyuan power switch family, presents the latest technology in remote monitoring and control of non-standby power supply in CATV systems. It enables ordinary power supplies to be interactive: one unit stands by when another feeds power to the loads as per instruction from SPS-2FS1. Meanwhile, SPS-2FS1 detects working status of both units. In case of operating unit failure, standby unit transfer into operation mode and continue feeding the loads as per instructions of SPS-2FS1.

Highlights

  • 30V to 90V wide operating voltage range
  • 15A through current rating

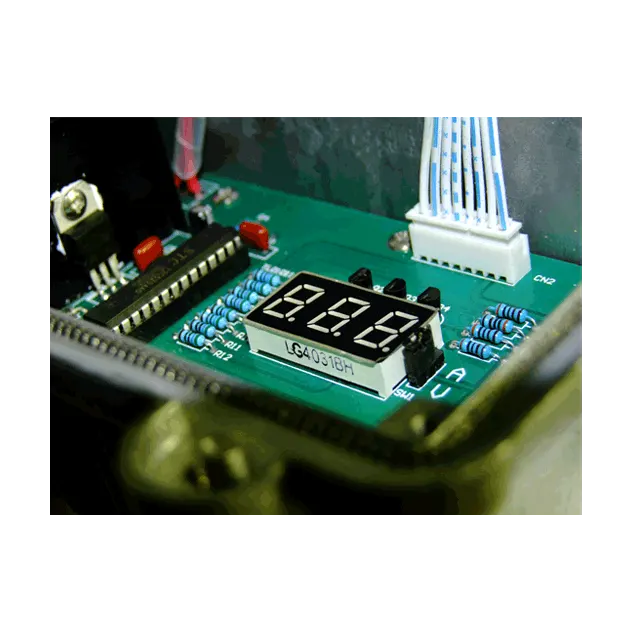

  • Digital panel meter displays voltage and current
  • Advanced micro-processor technology
  • Optional HMS transponder for status monitoring

Specifications

ModelsSPS-2FS1
Nominal Specifications
Input Voltage30VAC to 90VAC
Operating Bandwidth5 to 1000MHz
AC Current Capacity15A
HUM modulation≥66dB
Return Loss16dB(860 to 1000MHz)
Insertion Loss1.3dB(860 to 1000MHz)
Impedance75Ω
Input Interface5/8" female x 2
Output Interface5/8" female x 1
Digital DisplayVolt & Current
LED DisplayLocal feed, remote feed, alarm
FinishAluminum alloy, powder coated
Dimensions228x139x102mm
Gross Weight1.1kgs (excluding transponder)
  1. Dual-line Power Switch and Multi-line Power Switch available.
