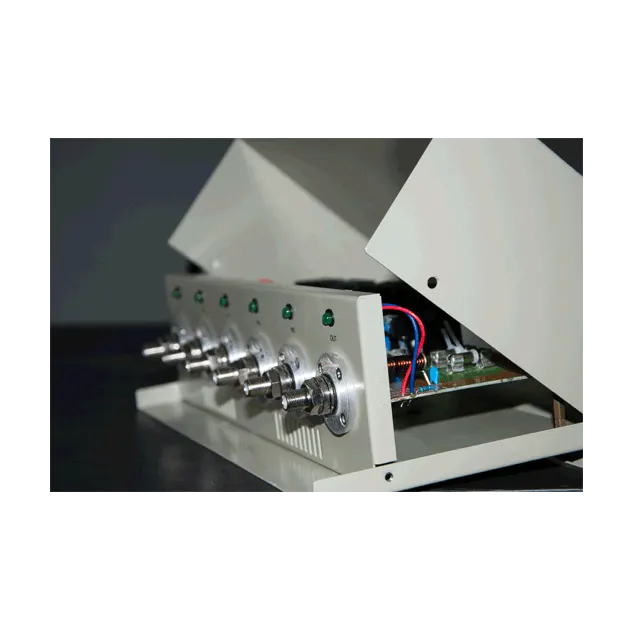

SPS-5116C Series Multi-line Power Switch

SPS-5116C-Multi-line Power Switch
SPS-5116C-Multi-line Power Switch

■Improve reliability of power system of your cable network

■Make your ordinary power supplies an interactive back-up power system

This device is developed on the basis of SPS-2116 Dual-Line Power Switch. SPS-5116C provides more connections for power supplies and monitor operating status of up to 5 power supplies at the same time. In the event that one of these power supplies fails to perform normally, the power switch will automatically get power from a power supply next to the failed one and feed the power to loads of the failed one. This further ensures powering of the entire system.

SPS-5116C is equipped with durable indicators for distant observation. Moreover, both SPS-5116A and SPS-5116C integrate functions of power feed inserter to saves operators investment.

Highlights

  • 5MHz to 1000MHz broadband operation
  • Up to five power supplies monitored and controlled
  • Embedded power inserter (EPI) installed
  • 30 to 90VAC wide input voltage range
  • 15A through current rating
  • Powder coated enclosure for outdoor applications
  • Full weather seal with strand clamp for outdoor applications
  • 5/8 inch female connections (both input and output)

Specifications

ModelsSPS-5116C
Nominal Specifications
Input Voltage30VAC to 90VAC
Operating Bandwidth5 to 1000MHz
AC Current Capacity15A
HUM modulation≥66dB
Return Loss16dB(860 to 1000MHz)
Insertion Loss1.3dB(860 to 1000MHz)
Impedance75Ω
Input Interface5/8" female x 2
Output Interface5/8" female x 1
FinishDurable powder coated steel plate
Dimensions332x158x89mm
Gross Weight3.2kgs
  1. More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
  2. Due to continuing improvements, the product is subject to change without prior notice.
