TBS Series Toroidal Transformer

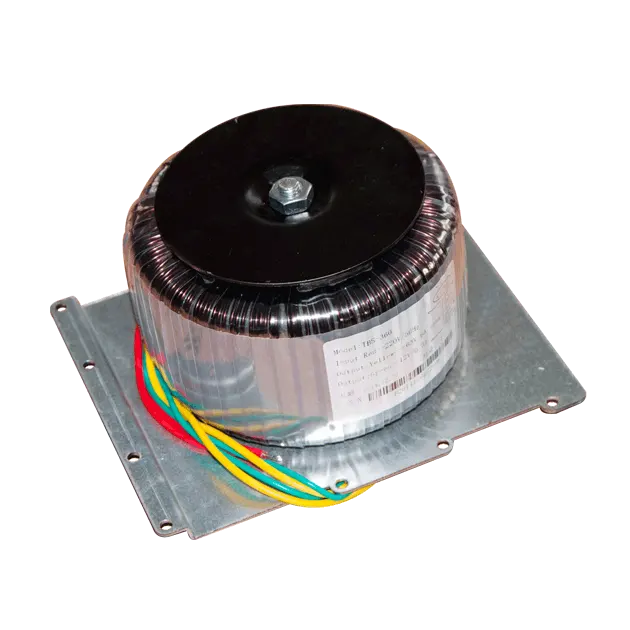

TBS-Toroidal Transformer
TBS-Toroidal Transformer
  • TBS-Toroidal Transformer
  • TBS-Toroidal Transformer
Quick Quote

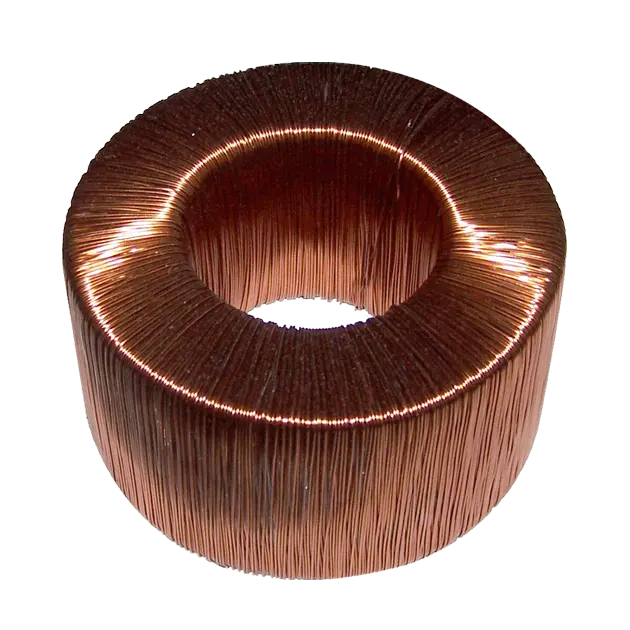

Toroidal transformers are built around a ring-shaped core, which is made from excellent silicon steel. Compared to EI types, advantages of toroidal transformers include smaller size, lower weight, less mechanical hum, lower exterior magnetic field, low off-load losses, single-bolt mounting, and greater choice of shapes.

Highlights

  • Built of excellent silicon steel
  • Sine-wave output
  • NO noise, low power consumption
  • Quality ensured by 20+ years experience

Specifications

ModelsTBS
Input
Voltage110V, 120V, 220V, 230V, 240V or customized
Voltage Range+/-15% (wider range is optional)
Frequency50Hz / 60Hz
Power Factor≥0.9
Output
Voltage30V,48V, 60V, 90V, 220V or customized
Power10VA ~ 900VA
Short Current150% of max. current rating
Efficiency≥85%
  1. More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
  2. Due to continuing improvements, the product is subject to change without prior notice.

Related Products

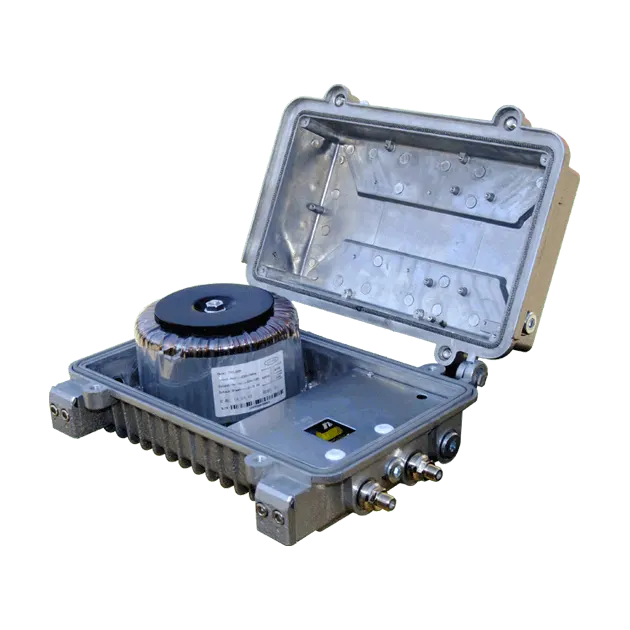

FYGD-F CATV Power Supply
