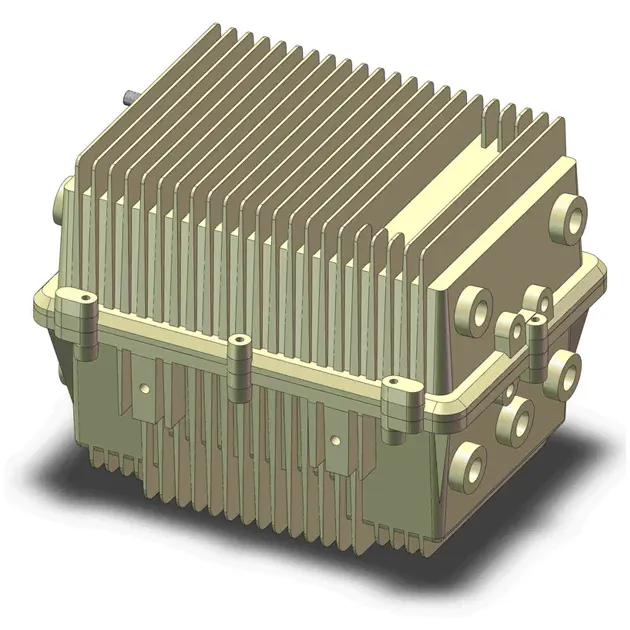

FYGD-CF Series Non-standby Power Supply

FYGD-CF-Non-standby Power Supply
FYGD-CF-Non-standby Power Supply
  • FYGD-CF-Non-standby Power Supply
  • FYGD-CF-Non-standby Power Supply
Quick Quote

FYGD-CF Series non-standby power supply provides conditioned power to signal amplifier in cable television and broadband distribution systems. The enclosure utilized by FYGD-CF is built of durable powder coated aluminium alloy, which provides excellent ingress protection.

Highlights

  • Constant voltage ferro-resonant transformer
  • Fully regulated, clean and reliable output AC power
  • Input and output protection, lightning surge protection
  • Current limited output and short-circuit protection
  • Automatic restart upon removal of short
  • Field selectable output voltages
  • Powder coated enclosure for outdoor applications
  • Excellent ingress protection
  • Strand mount installations
  • 5/8”female output connection
  • Durable LED indicator

Specifications

ModelsFYGD-CF60-15A-WFYGD-CF60-15A-LFYGD-CF6090-15A-L120
Input
Voltage220VAC120VAC
Voltage Range+/-15%
Frequency50Hz60Hz60Hz
ProtectionFuse(8A)Fuse(15A)
Power Factor≥0.9(full load)
Output
Voltage60VAC60/90VAC, field-selectable
Regulation+/-5%
WaveformQuasi-square
Current15A
Power900VA
ProtectionCurrent limited
Short Current150% of max. current rating
Efficiency≥90%
Mechanical
Input Connection(s)Terminal Block
Output Connection(s)5/8" female
Enclosure MaterialAluminum alloy
FinishPowder coating
Dimensions305x231x226mm / 12” (W) x9.1” (H) x8.9” (D)
Environmental
Operating Temperature-40°C to 55°C / -40°F to 131°F
Humidity0 to 95% non-condensing
  1. More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
  2. Due to continuing improvements, the product is subject to change without prior notice.
