Products Outdoor EnclosurePME Pole Mount Outdoor Enclosure

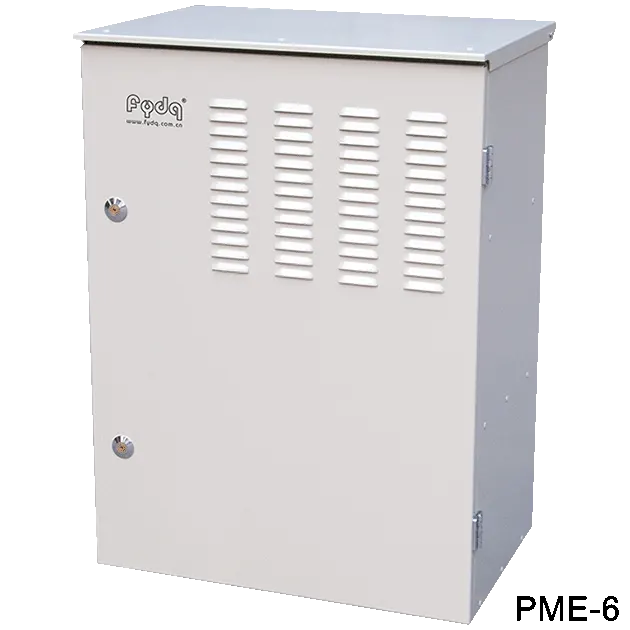

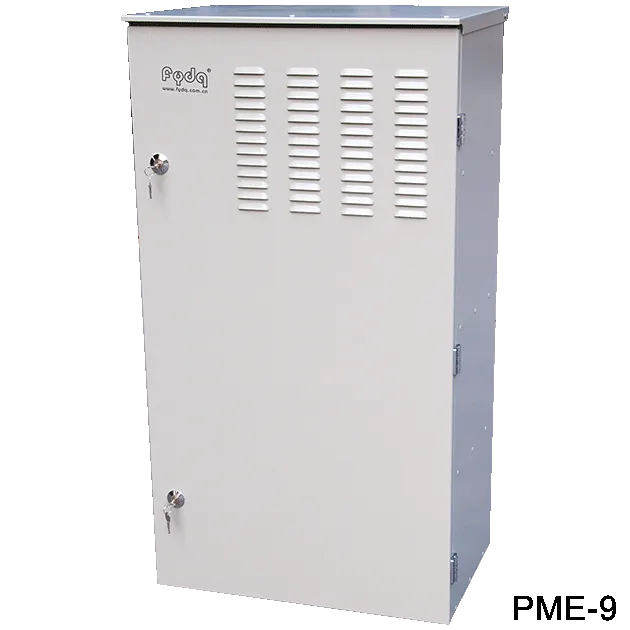

PME Series Pole Mount Outdoor Enclosure

Quick Quote

Highlights

Designed for cable/broadband outdoor powering applications
Flexible design and configurations, customized configurations available
Built-of durable powder coated aluminum
Security lock as standard feature

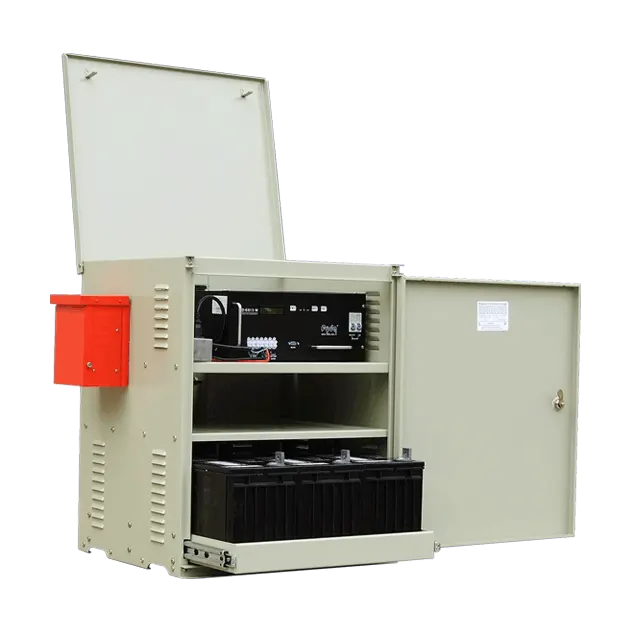

Optional battery slide tray (with heavy-duty slide)
Pole and wall mounting installations

Specifications

Models	PME-3	PME-3-2U	PME-4	PME-6	PME-8
Mechanical
Battery Tray Capacity	3 batteries		4 batteries	6 batteries	8 batteries
Battery Slide Tray	Optional
Multi-purpose Shelf	N/A	Yes	N/A	N/A	N/A
Material	Aluminum
Finish	Powder coating
Dimensions	628x621x415mm / 24.7"x24.4"x16.3"	628x724x510mm / 24.4"x28.5"x20.1"	772x621x415mm / 30.4"x24.8"x16.3"	628x934x415mm / 24.7"x36.8"x16.3"	772x934x415mm / 30.4"x36.8"x16.3"
Weight	18kgs / 39.7lbs	22kgs / 48.5lbs	26kgs / 57.3lbs	33kgs / 72.8lbs	56kgs / 123.5lbs

PME is formerly called PWM.
Battery tray capacity is calculated based on dimensions of 100AH VRLA SMF batteries.
Enclosure with multi-purpose shelf features three-story structure with a 2U height space between power supply shelf and battery tray.
Weight of batteries is not included.
