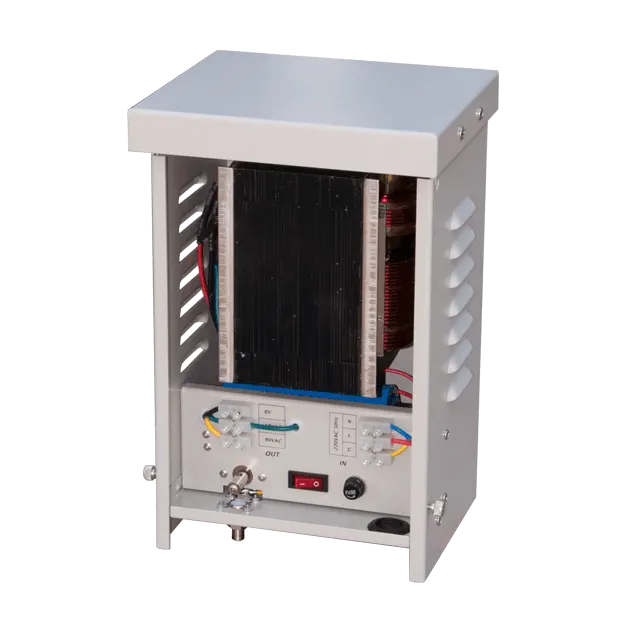

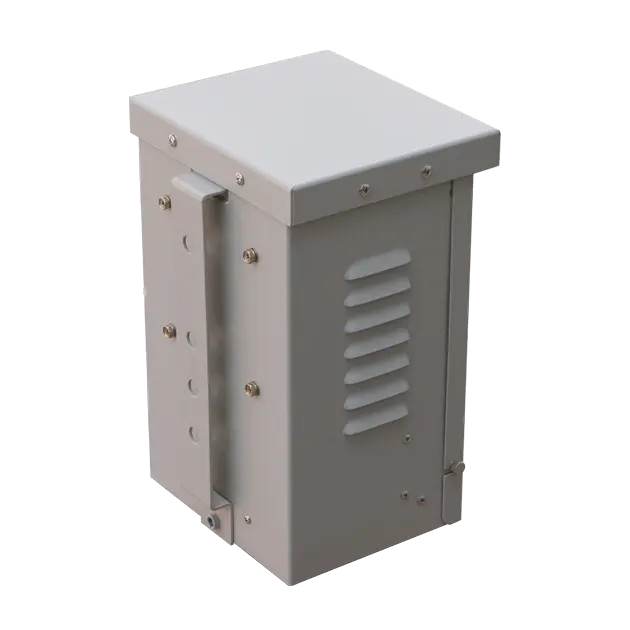

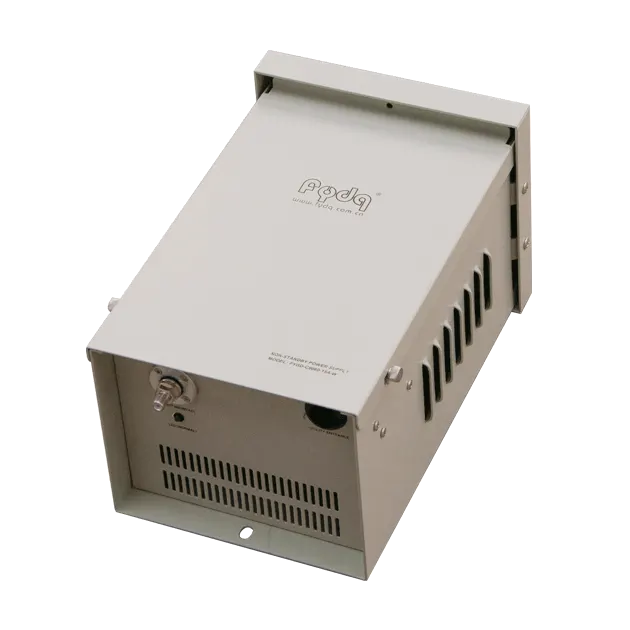

FYGD-C Series Non-standby Power Supply

FYGD-C-Non-standby Power Supply
FYGD-C-Non-standby Power Supply
FYGD-C-Non-standby Power Supply
FYGD-C-Non-standby Power Supply
  • FYGD-C-Non-standby Power Supply
  • FYGD-C-Non-standby Power Supply
  • FYGD-C-Non-standby Power Supply
  • FYGD-C-Non-standby Power Supply
Quick Quote

Highlights

  • Constant voltage ferroresonant transformer
  • Fully regulated, clean and reliable output AC power
  • Input and output protection, lightning surge protection
  • Current limited output and short-circuit protection
  • Automatic restart upon removal of short
  • Field selectable output voltages
  • Powder coated enclosure for outdoor applications
  • Pole & wall mount installations
  • 5/8”female output connection
  • Durable LED indicator
  • Optional Time Delay Relay (TDR)

Specifications

ModelsFYGD-C60-15A-WFYGD-C60-15A-LFYGD-C6090-15A-L120FYGD-C9060-15A-W
Input
Voltage220VAC120VAC220VAC
Voltage Range+/-15%
Frequency50Hz60Hz60Hz50Hz
ProtectionFuse(8A)Fuse(15A)
Power Factor≥0.9(full load)
Output
Voltage60VAC60V60/90VAC, selectable60/90VAC, selectable
Regulation+/-5%
WaveformQuasi-square
Current15A
Power900VA1350VA
ProtectionCurrent limited
Short Current150% of max. current rating
Efficiency≥90%
Time Delay Relay
Initialization10s (selectable, TDR is an optional feature)
Mechanical
Input Connection(s)Terminal Block
Output Connection(s)5/8" female
Enclosure MaterialAluminum
FinishPowder coating
Dimensions335x217x190mm / 13.2”x8.5”x7.5”
Environmental
Operating Temperature-40°C to 55°C / -40°F to 131°F
Humidity0 to 95% non-condensing
  1. More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
  2. Due to continuing improvements, the product is subject to change without prior notice.
