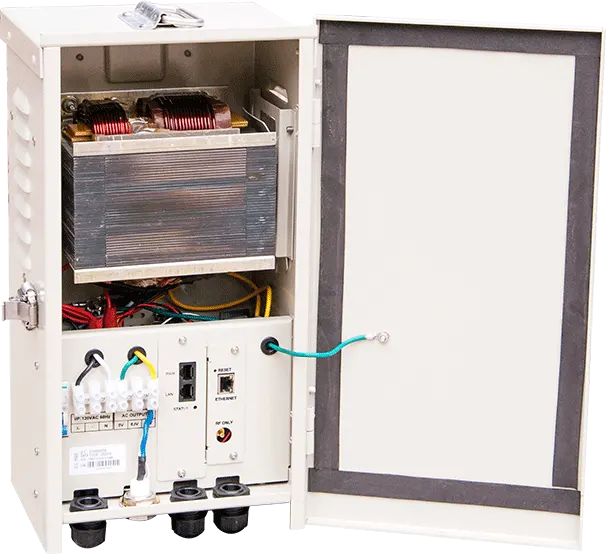

GD-CPT SeriesNon-standby Power Supply

Features

  • Ferro-resonant transformer provides fully regulated, clean and reliable AC output
  • Current-limited output and short-circuit protection
  • MCU-controlled intelligent overload protection
  • Quasi-square wave AC output
  • Power over Ethernet (PoE) module as standard feature
  • Powder coated aluminum housing for outdoor applications
  • Service receptacle (NEMA 5-15R or customized)
  • Optional DOCSIS/EuroDOCSIS 3.0 Transponder / Cable Modem as backhaul

Nominal Specifications

ModelsGD-CPT900-L120GD-CPT1350-L120GD-CPT900-WGD-CPT1350-W
Input
Voltage120VAC220VAC
Voltage Range-20% to 15%
Frequency60Hz50Hz
Power Factor≥0.9(full load)
Output
Voltage60/90VAC
Regulation+/-5%
WaveformQuasi-square
Current15A / 10A22A / 15A15A / 10A22A / 15A
Power900VA1350VA900VA1350VA
ProtectionCurrent limited
Short Current150% of max. current rating
Efficiency≥90%
Power-over-Ethernet (PoE)
Input Voltage Range85 to 265VAC
Input Frequency50/60Hz
Power Factor50VDC @ 1A
Output Voltage1%
Ripple2%
Line Regulation75KHz
Switching Frequency85%
EfficiencyNo
LAN Activity IndicatorYes
Gigabit LAN PortNo
Remote ResetNo
Reset ButtonNo
Date In / PoE InterfaceRJ45
Mechanical
Input Connection(s)Terminal block
Output Connection(s)5/8" female
LED DisplayPower supply status, transponder status
Enclosure Materialpowder coated aluminum
Dimensions216 x 394 x 188mm / 8.5” x 15.5” x 7.4”
Environmental
Operating Temperature-40°C to 55°C / -40°F to 131°F
Humidity0 to 95% non-condensing
  1. More voltage configurations may be available. Please download the datasheet or contact us directly for more details.
  2. Due to continuing improvements, the product is subject to change without prior notice.
